The Dragon System1: Twinslot Wall Display Shop-fitting hanging system: Options

Using slotted posts are a contemporary way of keeping the tremendous versatility of a slotted system:

Here are 4 Options for using 3 different sections, round, square and rectangular, giving 4 different visual effects:

Click on any image for an enlarged view

NB: We are currently updating our product options here

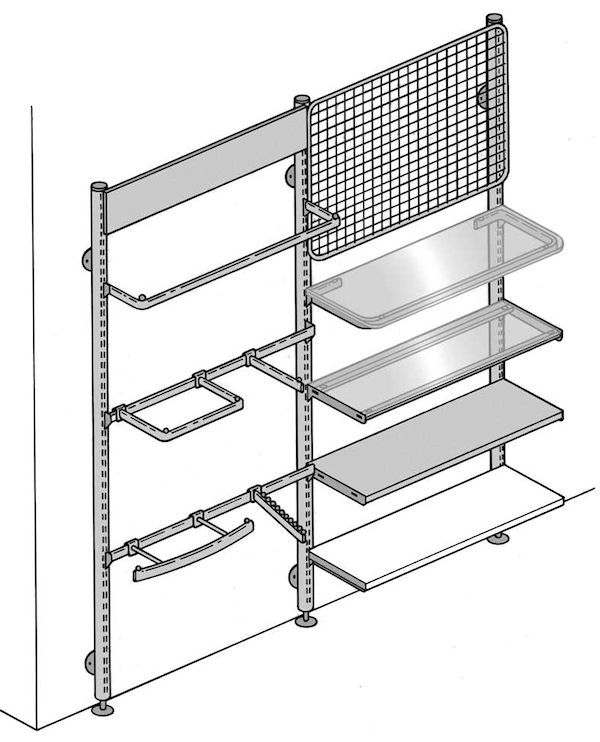

Option 1: Forward Hanging Achieved with CA412 square, CA502 round, and CA612 rectangular Gallery pictures – rows 3, 4, plus 6 & 7

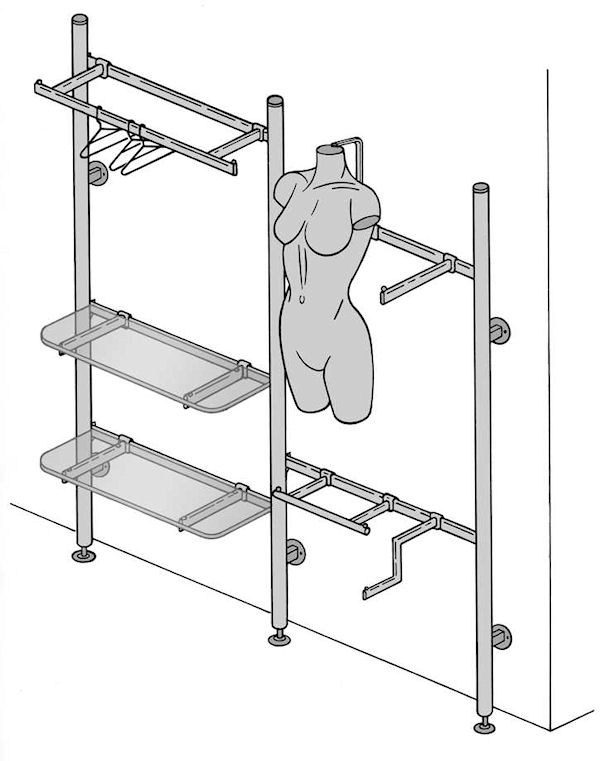

Option 2A: Rear Hanging with round posts Using CA501 50 dia Slimposts, slotted on the rear only, no slots on the front. Gallery pictures - Row 5 pics 1, 2 & 4
Rear Hanging with Square or Rectangular posts

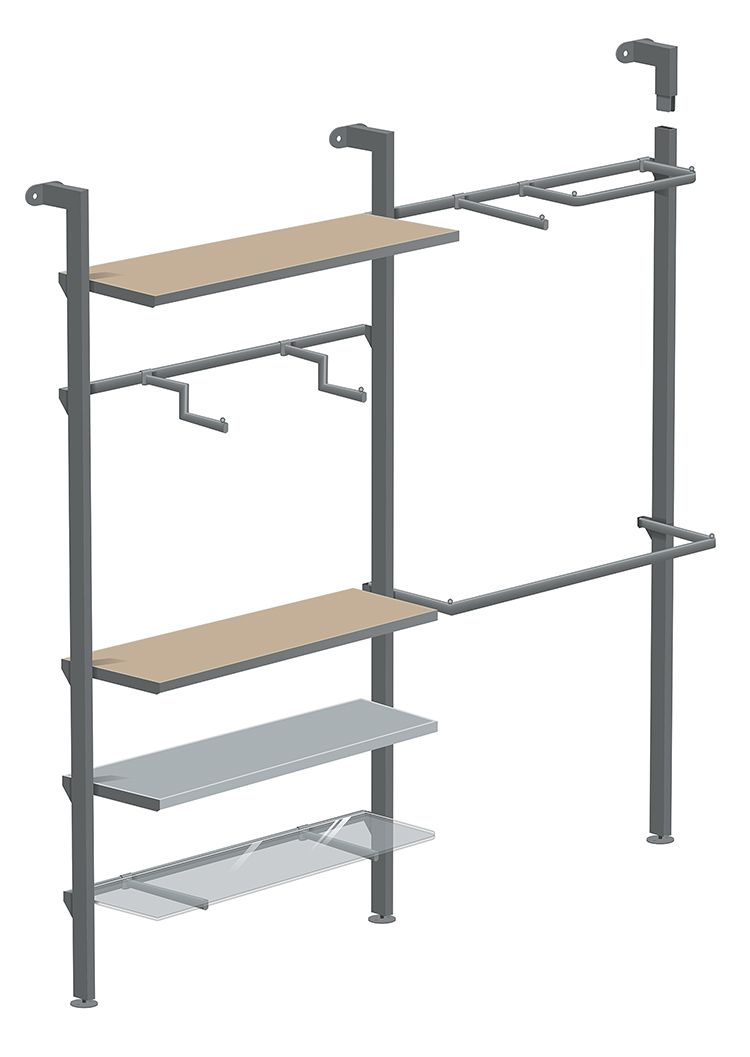

Option 2B: Rear Hanging with Square or Rectangular posts Using CA401/R 30mm Square or CA601/R 60x30 posts, no slots on the front, accessories attached in the rear slots, hanging or shelves will be predominantly in front of the posts. Gallery pictures - Row 5 pic 3
Deep Rear Hanging

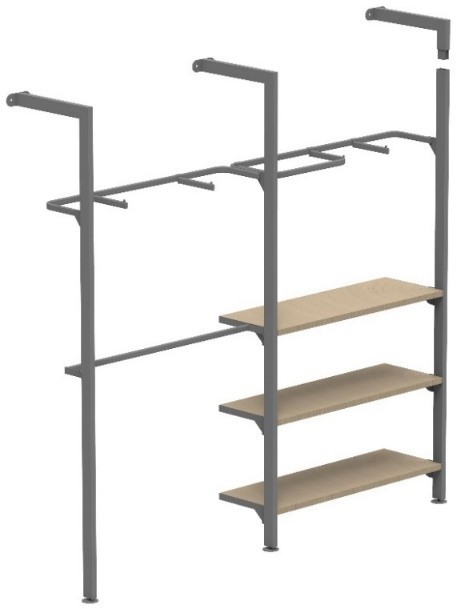

Option 3: Deep Rear Hanging Achieved with (normally) CA601/R 60x30 posts, or CA401/R 30x30 posts, no slots on the face, the front of clothing hanging comes very approximately level with the front of the posts. Gallery pictures - Row 6 – pics 1, 2, 5
Half/Half Rear Hanging

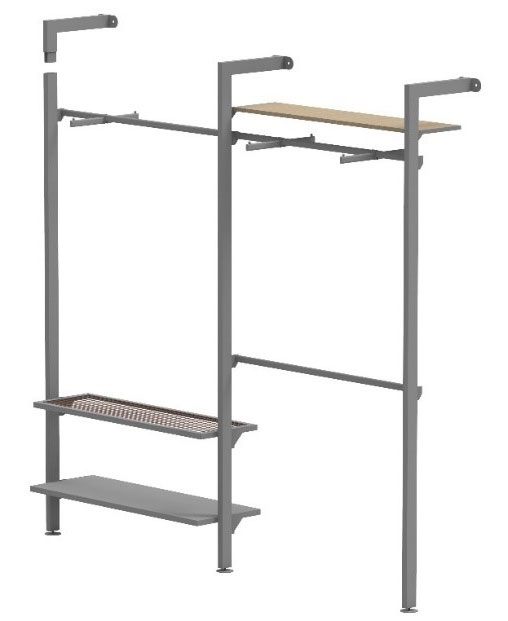

Option 4: Half/Half Rear Hanging Using CA601/R 60x30 posts or CA401/R 30mm Square posts, no slots on the front face, clothing hanging will be partly behind and partly in front of the posts. Gallery pictures - Row 6 – pics 3 & 4
Option 5: use the CA321 Wall channel, which is a cheaper option, but maybe looks a little less contemporary now, and takes more fixing. Option 6: For instances where you need to have a freestanding system: see Legs or Exhibitions Other Options
  • Colour: use our standard silver-grey, a contemporary, neutral colour, or for just 5% extra specify another colour: our NEW champagne - a super finish for fashion - or black, white, cream, clear lacquer (an ‘urban’ look), graphite (a darker, slightly textured grey) chocolate brown . . . or maybe specify your own. If it’s available we can do it.
  • Posts can be used centre-shop too, fixing top and bottom
  • If you need to accommodate panels, see the panels page
